Description

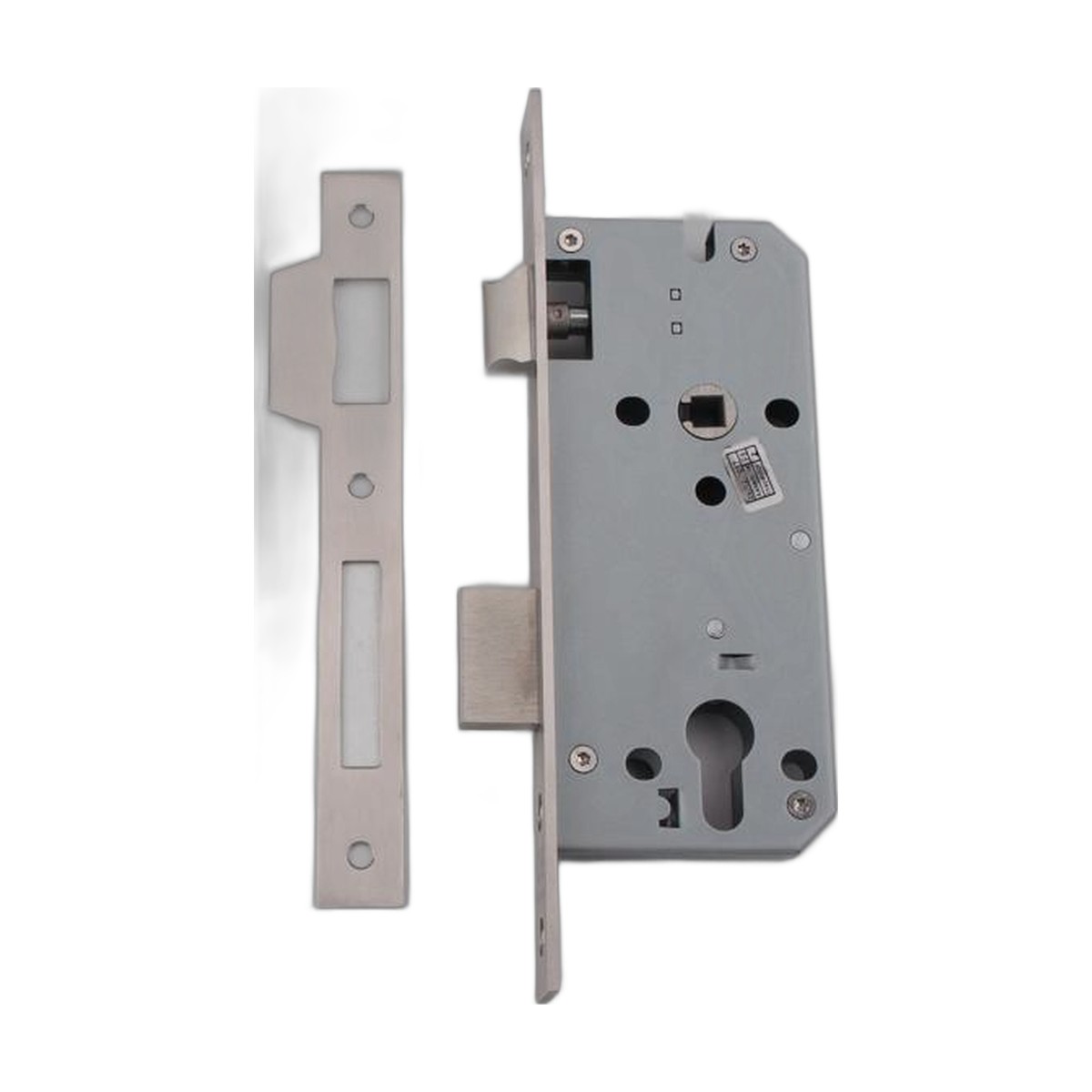

The ZARA Sash Lock AZBMML026 is a mortice lock body with a latch bolt and a deadbolt. The deadbolt, latch bolt and follower are solid SS304 stainless steel, and the forend and strike plate are SS304 in a satin finish. It is made for wooden or metal doors, including fire-rated doors, in commercial and residential buildings.
Specifications
| Art. No. | AZBMML026 |
|---|---|
| Backset | 45 mm (AZBMML026-4585), 50 mm (AZBMML026-5085), 60 mm (AZBMML026-6085) |
| Centre distance | 85 mm |
| Forend | 235 × 24 × 3 mm (45 mm backset data sheet) |
| Material | Solid SS304 deadbolt, SS304 latch bolt and follower, SS304 forend and strike plate |
| Finish | Satin |
| Supplied with | Plastic strike box, fixing screws |
| Door type | Wooden or metal doors, including fire-rated doors |
| Certification (data sheet) | CE, BS EN 12209, classification 3X910G3BC00; BS EN 1634 fire rated |

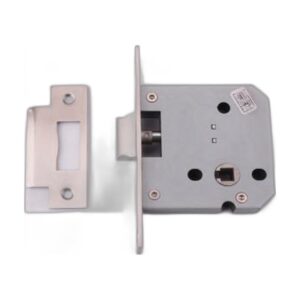

Choose the backset that matches your door and handle set. Other ZARA lock bodies: Latch Bolt Lock Body 55 mm (AZBMML028), Deadbolt Lock Body 55 mm (AZBMML029), Fire-Rated Sash Lock 55-72 mm (AZBMML009) and the full Lock Body range. Lever handles: Door Handles.
Trade enquiries: Contractors, carpenters, fit-out companies and hardware shops are supplied from the Al Zafeer warehouse in Al Quoz, Dubai, with free delivery across the UAE in 1–3 working days. Message ZARA Tools on WhatsApp.
